Δικτυακό καταγραφικό NVR
Δικτυακό καταγραφικό NVR
N8209
VStarcam
9 καναλιών IP
Original price was: 63.90€.54.90€Η τρέχουσα τιμή είναι: 54.90€.
- Δικτυακό Καταγραφικό NVR 9 καναλιών HD
- H264
- Έξοδος HDMI & VGA
- 2 USB θύρες.
Σε απόθεμα
Περιγραφή
Δικτυακό καταγραφικό (NVR) N8209 συμβατό με όλες τις IP κάμερες της VStarcam,

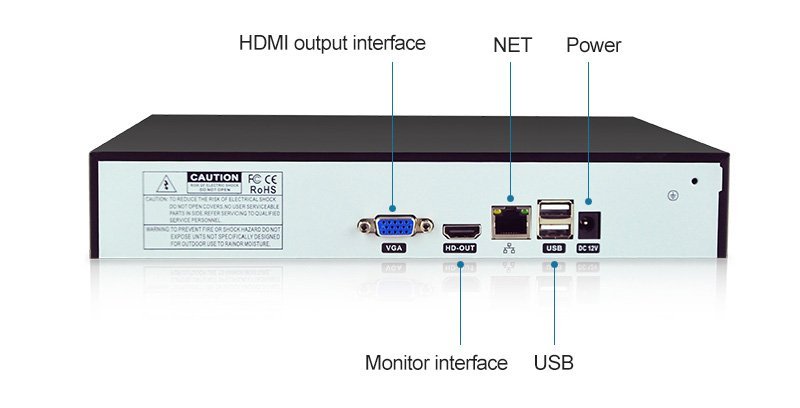

Μικρό μέγεθος με έξοδους HDMI και VGA,
Υποστηρίζει έως 9 IP κάμερες,

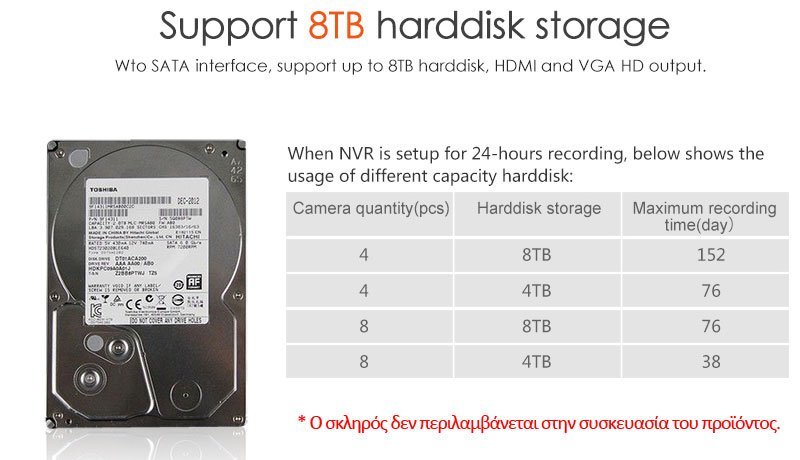

Θέσεις εσωτερικών Δίσκων: 1
Θύρες Δικτύου: 1x 10/100 Ethernet
Άλλες θύρες: 2 x USB
Έξοδοι Βίντεο: HDMI και VGA
Λογισμικό: Παρέχεται Δωρεάν,
Διαστάσεις: 255mm (Μ) x 244 mm (Π) x 42mm (Υ)
Βάρος (χωρίς δίσκο): 1.200 gr
Ενσωματώνει Λειτουργικό Linux και λειτουργία ανίχνευσης κίνησης
Επιπρόσθετες Πληροφορίες
| Βάρος | 0.800 kg |
|---|---|
| Διαστάσεις | 25 × 35.5 × 5.5 cm |
ΤΕΧΝΙΚΑ ΧΑΡΑΚΤΗΡΙΣΤΗΚΑ
| εριλαμβάνει Τηλεχειριστήριο από το Lot Number 5530117 και μετά | |||
| Model | AQ-5604LAHD | ||
| System | |||
| Main Processor | Industrial embedded chip Hi3520DV200 | ||
| Operating System | Embedded LINUX | ||
| Video | |||
| Multi-mode input | Analog: 4*1080N, 4*720P, 4*960H; | ||
| Mixing: 2*AHD-M(analog)+ 2*720P(network); | |||
| Network: 8*1080P; 12*960P; 8*720P; 4*1080P; 4*720P; 1*1080P | |||
| Input | 4CH BNC | ||
| Signal Type | AHD/CVI/TVI2.0/AnologI/Network | ||
| Output | 1CH Out/ VGA ,1CH Out/HDM (Suport:1920*1080P） | ||
| Audio | |||
| Input | 4Channel, RCA | ||
| Two-way Audio | Not Supported | ||
| Output | 1 Channel, RCA | ||
| Alarm | |||
| Sensor Input | NO | ||
| Output | NO | ||
| Motion Detection | 16 × 12 grids per channel;6 adjustable parameters for accurate detection(for local analog channel only) | ||
| Trigger Events | Recording, PTZ, Tour, Email | ||
| Email Alarm | Send Strings to The Designated E-mail | ||
| PTZ | |||
| Interface | RS485 | ||
| Protocol | Support more than 20 kinds protocols. | ||
| Baud Rate | 1200~115200 | ||
| Address | 1~255 | ||
| Display | |||
| VGA | Resolution:1920*1080,1280*720,1440*900,1280*1024,1024*768 | ||
| HDMI | Resolution:1920*1080,1280*720,1440*900,1280*1024,1024*768 | ||
| Display Split | 1/4/8/9 screen | ||
| Privacy Masking | 4 Rectangular Zones (local camera) | ||
| OSD | Camera title, Time, Video loss, Alarm, Motion detection, Recording | ||
| Recording | |||
| Video Compression | H.264 | ||
| Audio Compression | G.711A | ||
| Resolution | 1080P/720P/960H | ||
| Video Quality | Best/Better/Good/General/worse/worst | ||
| Record Rate | 1080N(960*1080 4*25fps),720P(1280×720 4*25fps), 960H(P:960×576 4*25fps/N:960×480 4*30fps) | ||
| Record Mode | ManualTimerMotion Detection | ||
| Playback & Backup | |||
| Sync Playback | 4 Channel(All HD Anolog Mode)/ 1Channel | ||
| Remote Playback | 4 Channel/1channel | ||
| Search Mode | ALL, Channel, Manual, Time, Date, Motion Detection | ||
| Playback Functions | Play, Pause, Stop, Rewind, Fast Play, Slow Play, Digital zoom | ||
| Backup Mode | USB Device/Network | ||
| Network | |||
| Interface | 1*RJ45 10/100 Base-T self-adaptive Ethernet port | ||
| Network Functions | DHCP、PPPOE、NTP、Email、IP Authority、DDNS、FTP、ARSP、Alarm Center、Wireless Dialing、Mobile Monitor、UPNP、Wifi、RTSP、Cloud Service | ||
| DDNS | 3322、dyndns、oray、myq-see,etc | ||
| Web Browser | Internet Explorer | ||
| CMS Software | Support Windows XP/ Windows Vista/ Windows 7/ Windows 8.1/ Windows 10 | ||
| Extra Stream | D1/CIF/QCIF(1~25fps) | ||
| Smart Phone | iPhone, Andriod | ||
| Hard Disk Driver | |||
| Interface Type | 1 SATA Interface | ||
| Capacity | Up to 6TB Capacity | ||
| General | |||
| Language | Support 27 languages (SimChinese、TradChinese、English、Farsi、Finnish、French、German、Greek、Hungarian、Italian、Japanese、Poland、Portugal、Russian、Spanish、Thai、Turkey、Vietnamese、Romanian、Brazilian、korean、Indonesian、Swedish、Arabic、Bulgarian、Czech、Hebrew) | ||
| USB Interface | 2 USB 2.0 Interfaces , supporting USB mouse | ||
| Power Supply | DC12V/2A | ||
| Working Environment | 0℃ ~ +55℃/10~90% | ||
| Dimension (W×D×H) | 260*190*43(mm) | ||
| Weight | 2kg | ||
